C1-S // Technical Data

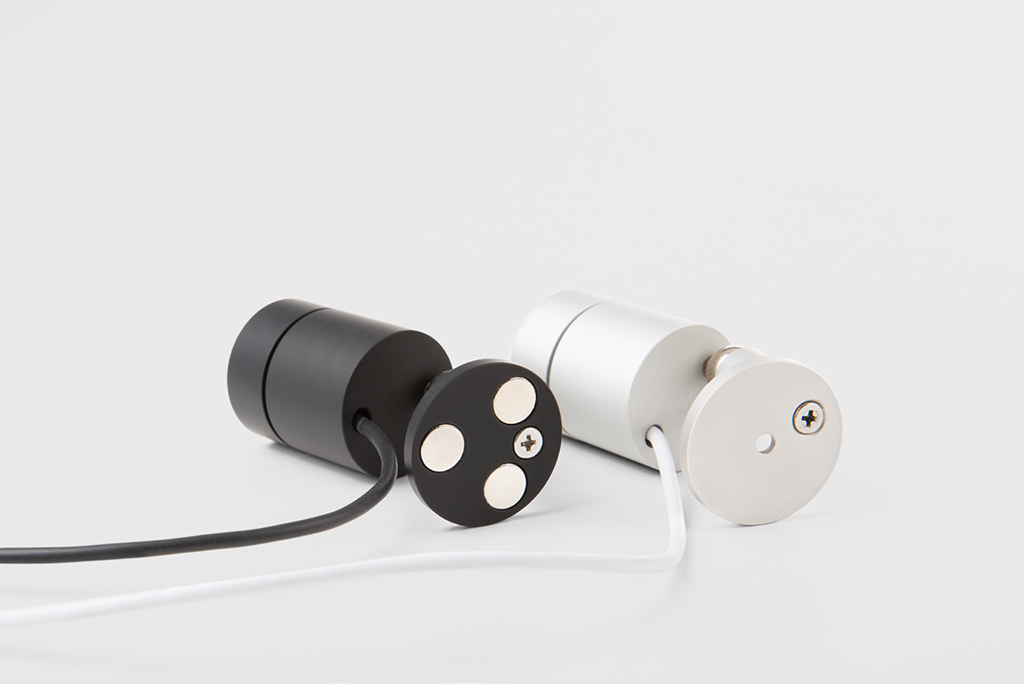

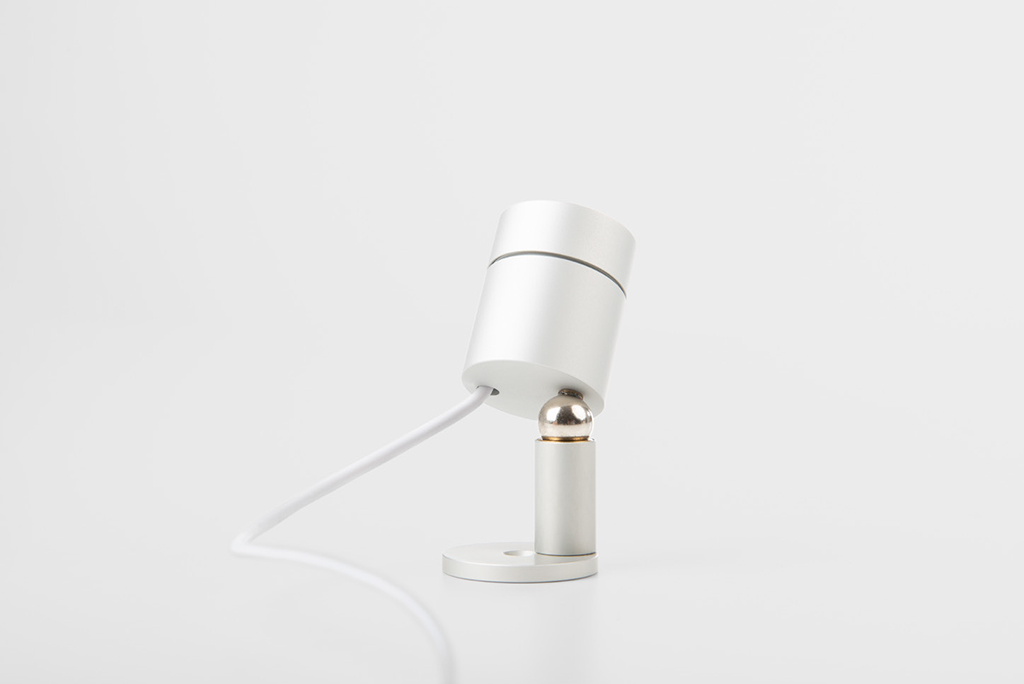

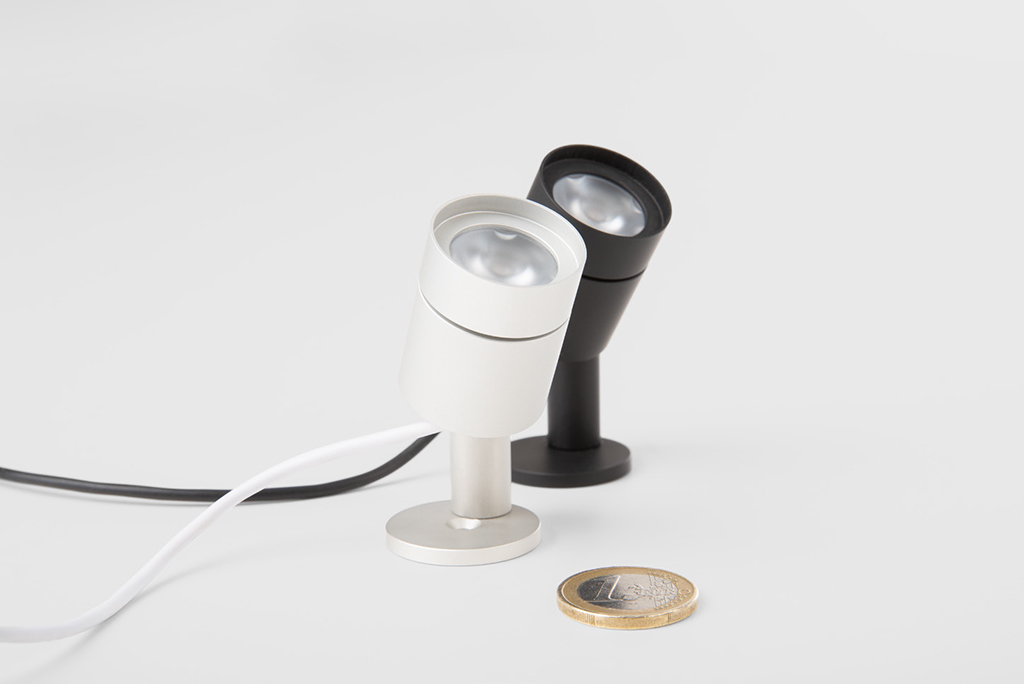

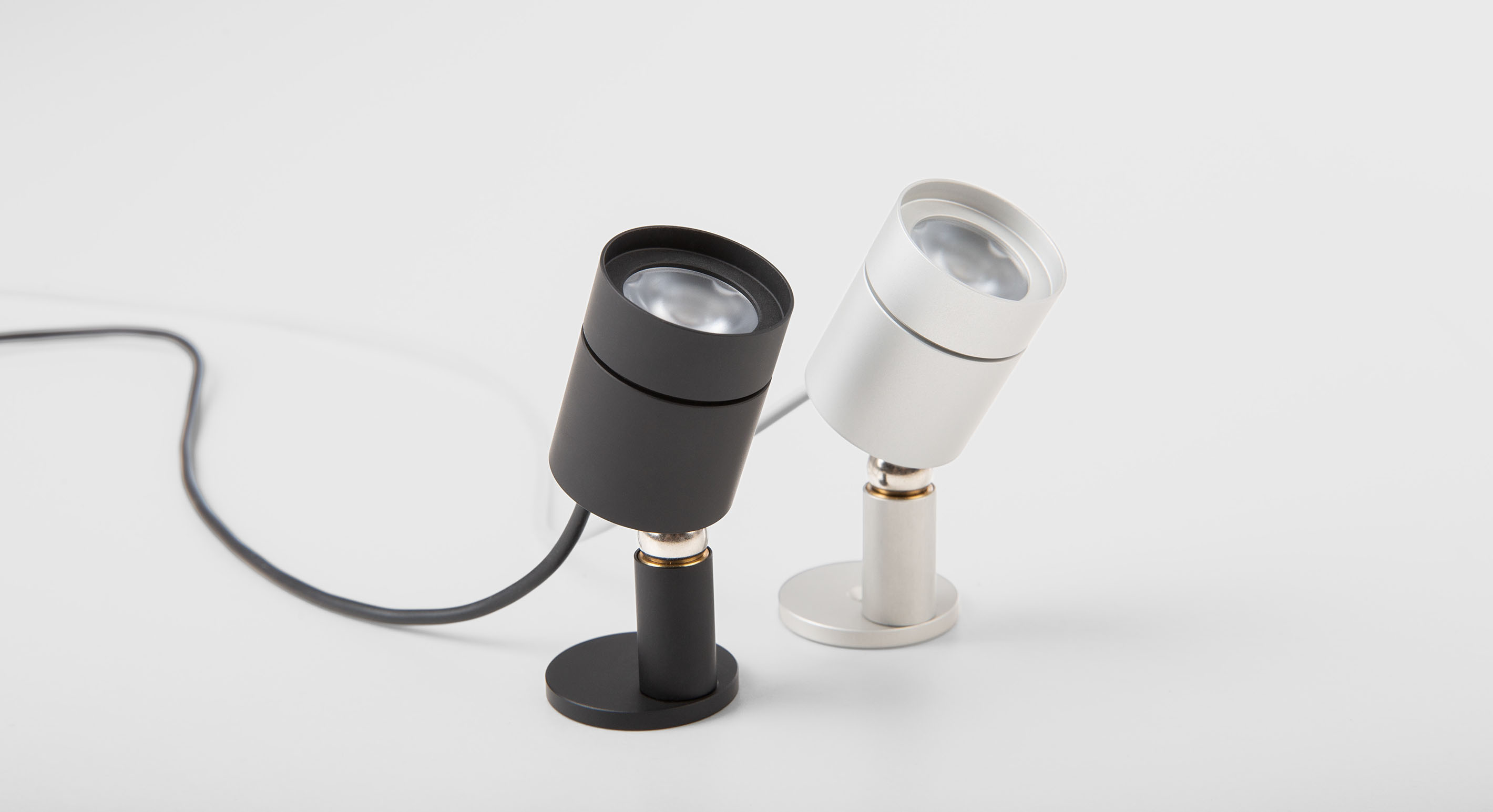

| description: | LED spotlight for installation in display cases, 360° rotatable, 180° swivelling, with screw base or magnetic base |
| part number: | A400017 |
| housing colour: | aluminum anodised matte in black, silver, gold, champagne (other surface finishing on request) |
| optics: | 10°, 15°, 20°, 35°, 45°, 80°, 46°+ 10° |
| light colour (+/- 100 K): | ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K |
| high power LED, high CRI: | DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10 |
| luminous flux (~3,000 K | 20° | 500 mA): | ~150 lm at ~2.1 W (71 lm/W) |
| power input: | 500 mA (constant current) |
| allowed LED driver: | LED driver for the Micro Jolly, Mini Jolly,Maxi Jolly by TCI with constant current (other LED driver on request) |
| dimming: | external via potentiometer (incl.) |
| protection class: | IP 20, protection class III, CE UL Listed No. E506729 - low voltage LED luminaire |
| optional accessories: | honeycomb grid, anti-glare tube, inclined tube, light diffusion foil, barn doors, zoom optic (2° - 25°, 6° - 36°) |
