C2-STT-D // Technical Data

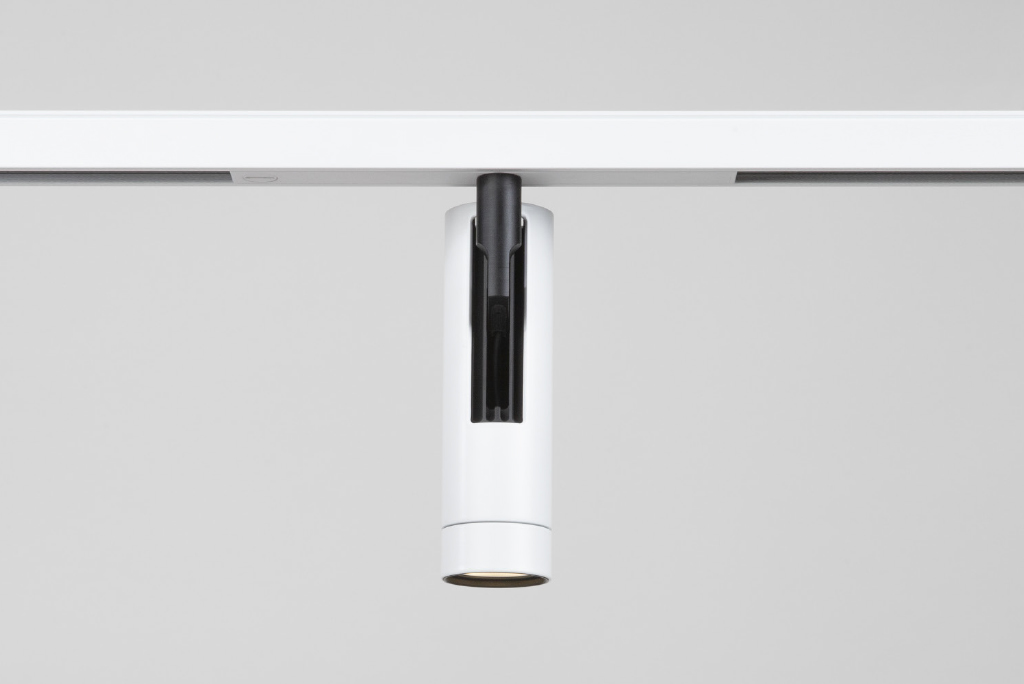

description: LED spotlight for track Multisystem EVO,
360° rotatable, ~90° swivelling
part number: A400463
housing colour: aluminum anodised matte in black
or powder-coated in white RAL 9016
optics: 18°, 25°, 32°, 67°; incl. light diffusion foil
light colour (+/- 100 K): ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K
3 high power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
protection class: IP 20, protection class III, CE
luminous flux (~3,000 K | 25° | 1000 mA): ~630 lm at ~9 W (70 lm/W)
power input: 48V DC (constant voltage)
allowed power supplies: power supply of ELG series by MeanWell with constant voltage 48V DC
(other LED driver on request)
dimming: analog 0-10V, DALI or Casambi
accessory: suitable for magnetic track type Multisystem EVO A.A.G. Stucchi 48V
optional accessories: honeycomb grid, anti-glare tube, inclined tube, snoot, light diffusion foil, barn doors
