C2-STT-M // Technical Data
description: | LED spotlight for track Multisystem EVO, 360° rotatable, ~160° swivelling |
part number: | A400464 |
housing colour: | aluminum anodised matte in black or powder-coated in white RAL 9016 |
optics: | 18°, 25°, 32°, 67°; incl. light diffusion foil |
light colour (+/- 100 K): | ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K |
3 high power LED, high CRI: | DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10 |
protection class: | IP 20, protection class III, CE |
luminous flux (~3,000 K | 25° | 1000 mA): | ~630 lm at ~9 W (70 lm/W) |
power input: | 48V DC (constant voltage) |
allowed power supplies: | power supply of ELG series by MeanWell with constant voltage 48V DC (other LED driver on request) |
dimming: | DALI or Casambi |
accessory: | suitable for magnetic track type Multisystem EVO A.A.G. Stucchi 48V |
optional accessories: | honeycomb grid, anti-glare tube, inclined tube, snoot, light diffusion foil, barn doors |

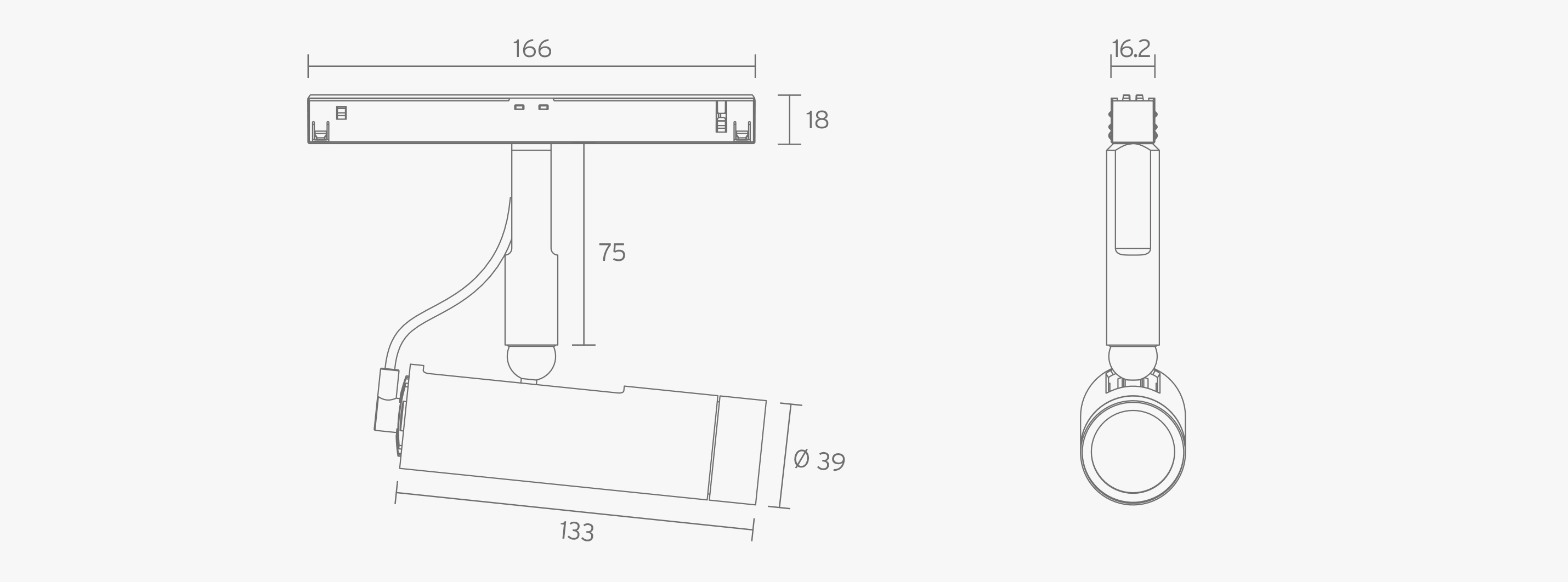

![Image](/images/vitrinenbeleuchtung/Abmessungen/C2-STT-M_e.jpg)
![Image](/images/vitrinenbeleuchtung/Serie_C2/C2-STT-M/5_C2-STT-M.jpg)
