C2-C // Technical Data
| single lens | triple lens | |
| description: |

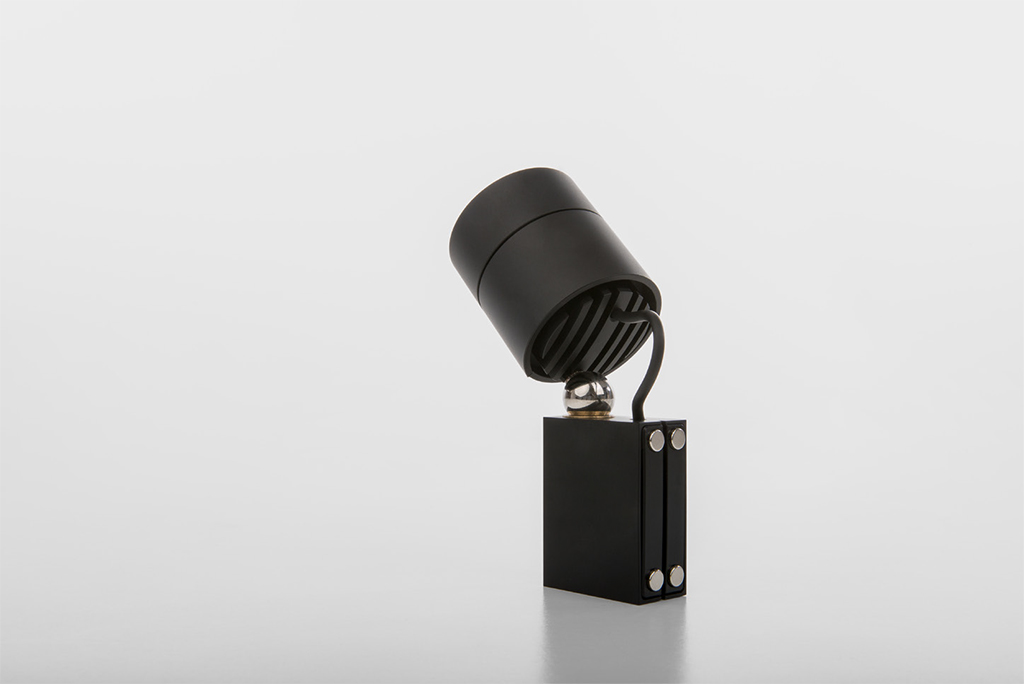

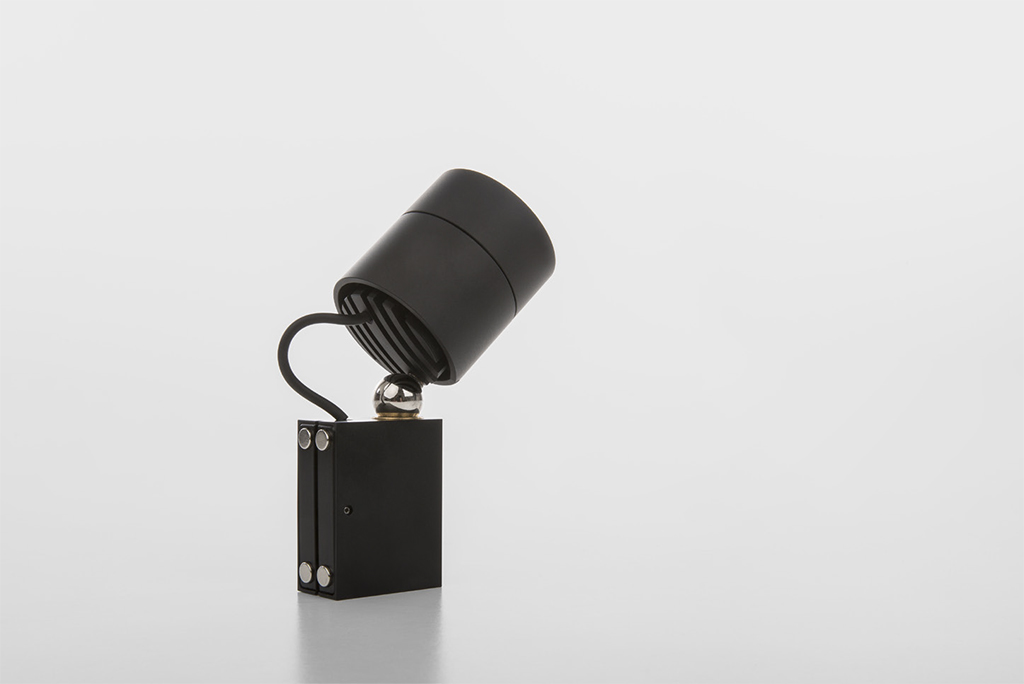

LED spotlight for installation on magnetic track,
180° rotatable, 90° swivelling |
LED spotlight for installation on magnetic track,
180° rotatable, 90° swivelling |
| part number: | A400031 | A400032 |
| housing colour: | aluminum anodised matte in black, silver, gold, champagne (other surface finishing on request) |
aluminum anodised matte in black, silver, gold, champagne (other surface finishing on request) |
| optics: |
6°, 12°, 25°, 60°, 40°+ 10°
|
13°, 25°, 42°
|
| light colour (+/- 100 K): | ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K | ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K |
| high power LED, high CRI: | DIN EN 55015:2019, lifetime 50,000 hours | basis of lifetime L80B10 |
DIN EN 55015:2019, lifetime 50,000 hours | basis of lifetime L80B10 |
| luminous flux (~3,000 K | 25°): | ~260 lm at ~3.5 W (74 lm/W) | ~310 lm at ~4.5 W (69 lm/W) |
| power input: | 9 - 24V DC | 9 - 24V DC |
| allowed power supplies: |
power supplies of LPF, NPF or APV series by MeanWell
with constant voltage 12V DC, class 2(other power supplies on request) |
power supplies of LPF, NPF or APV series by MeanWell
with constant voltage 12V DC, class 2(other power supplies on request) |
| dimming: | via Casambi-App | via Casambi-App |
| protection class: |
IP 20, protection class III, CE,
ETSI EN 300 328 V2.2.2, UL Listed No. E506729 - low voltage LED luminaire |
IP 20, protection class III, CE,
ETSI EN 300 328 V2.2.2, UL Listed No. E506729 - low voltage LED luminaire |
| accessory: | magnetic track | magnetic track |
| optional accessories: |
magnetic track holders,
honeycomb grid, anti-glare tube, slash cut tube, snoot (6°), light diffusion foil, barn doors |
magnetic track holders,
honeycomb grid |
